Datos del producto:
|
| Voltaje de carga máximo: | 4.2V | Temperatura de la carga: | -20℃ ~ + 60℃ |
|---|---|---|---|
| Voltaje de atajo: | 2.75V | Voltaje estándar: | 3.7V |
| Tarifa de funcionamiento: | 0.2C a 1C | Capacidad: | de 8mah a 110mah |
| Alta luz: | Batería ultra fina recargable de Lipo,Batería ultra fina 110mah de Lipo,Célula ligera del polímero de litio |
||
célula ultra fina del litio del polímero de la batería LP301215 LP091525 LP012323 LP601216 LP042040 LP370820 3.7v del lipo
Hay célula ultra fina recargable, voltaje 3.7v, serie de la batería del polímero de litio
Número de parte y capacidad calientes de la venta como siguen
LP091525- 15 mah LP012323-30 mah LP601216-60 mah
LP042040-8 mah LP370820-30 mah LP351020-55 mah
LP351215-40 mah LP401215-40 mah LP401040-100 mah LP302025-110 mah
Ampliamente utilizado en tarjeta inteligente y la solución de IOT, convenientes para el montaje del PWB
Ventajas de polímero de litio del producto de la batería:
1) Respetuoso del medio ambiente
2) Alta densidad de la energía
3) Peso ligero
4) Autodescarga baja
5) Resistencia interna baja
6) Vida de ciclo larga, hasta 500 o 1000 épocas cargables
7) Ningún efecto de memoria
8) No contiene Mercury, ningún fuego, ninguna explosión, ninguna salida
9) La carga muy buena y rápida, capacidad se puede cargar hasta el 90% dentro de 10 mínimos.
10) El grueso puede ser ajustado mientras que la anchura y la altura guardan lo mismo
Lista rechargaeble tamaño pequeño de la batería del po del li:
| Modelo | Capacidad (mah) | Dimensión (milímetros) | ||
| T±0.1 | W±0.5 | L±0.5 | ||
| 1254 | 60 | 5,4 | 12 | |
| 1040 | 35 | 4,2 | 10 | |
| 1038 | 30 | 3,8 | 10 | |
| 301030 | 70 | 3,0 | 10,0 | 30,5 |
| 301525 | 80 | 3,0 | 15,0 | 25,5 |
| 302020 | 90 | 3,0 | 20,0 | 20,5 |
| 302025 | 110 | 3,0 | 20,0 | 25,5 |
| 302030 | 120 | 3,0 | 20,0 | 30,5 |
| 303048 | 400 | 3,0 | 30,0 | 48,5 |
| 350926 | 60 | 3,0 | 9,0 | 26,5 |
| 380926 | 70 | 3,8 | 9,0 | 26,5 |
| 400808 | 18 | 4,0 | 8,1 | 8,2 |
| 400820 | 40 | 4,0 | 8,3 | 20,5 |
| 400835 | 100 | 4,0 | 8,3 | 35,5 |
| 400838 | 110 | 4,0 | 8,3 | 38,5 |
| 400909 | 25 | 4,0 | 9,1 | 9,2 |
| 400912 | 30 | 4,0 | 9,0 | 12,5 |
| 400930 | 80 | 4,0 | 9,0 | 30,5 |
| 401010 | 25 | 4,0 | 10,0 | 10,5 |
| 401012 | 35 | 4,0 | 10,0 | 12,5 |
| 401015 | 40 | 4,0 | 10,0 | 15,5 |
| 401020 | 55 | 4,0 | 10,0 | 15,5 |
| 401025 | 70 | 4,0 | 10,0 | 25,5 |
| 401030 | 90 | 4,0 | 10,0 | 30,5 |
| 401035 | 110 | 4,0 | 10,0 | 35,5 |
| 401230 | 110 | 4,0 | 12,0 | 30,5 |
| 401235 | 130 | 4,0 | 12,0 | 35,5 |
| 401730 | 150 | 4,0 | 17,0 | 30,5 |
| 402020 | 110 | 4,0 | 20,0 | 20,5 |
| 402025 | 150 | 4,0 | 20,0 | 25,5 |
| 402030 | 200 | 4,0 | 20,0 | 30,5 |
| 402035 | 230 | 4,0 | 20,0 | 35,5 |
| 402050 | 400 | 4,0 | 20,0 | 50,5 |
| 403040 | 400 | 4,0 | 30,0 | 40,5 |
| 403450 | 680 | 4,0 | 24,0 | 50,5 |
| 450833 | 110 | 4,5 | 8,3 | 33,0 |
| 400835 | 110 | 4,0 | 8,3 | 35,0 |
| 450845 | 165 | 4,5 | 8,3 | 45,0 |
| 450909 | 30 | 4,5 | 9,1 | 9,2 |
| 450912 | 35 | 4,5 | 9,0 | 12,5 |
| 500830 | 100 | 5,0 | 8,3 | 30,5 |
| 500843 | 160 | 5,0 | 8,3 | 43,0 |
| 500930 | 110 | 5,0 | 9,1 | 30,5 |
| 500935 | 130 | 5,0 | 9,1 | 35,5 |
| 500945 | 190 | 5,0 | 9,1 | 45,0 |
| 501012 | 43 | 5,0 | 10,0 | 12,5 |
| 501015 | 50 | 5,0 | 10,0 | 15,5 |
| 501030 | 110 | 5,0 | 10,0 | 30,5 |
| 501035 | 150 | 5,0 | 10,0 | 35,5 |
| 501220 | 85 | 5,0 | 12,0 | 20,5 |
| 501225 | 110 | 5,0 | 12,0 | 25,5 |
| 501230 | 120 | 5,0 | 12,0 | 30,5 |
| 501235 | 150 | 5,0 | 12,0 | 35,5 |
| 501240 | 200 | 5,0 | 12,0 | 40,5 |
| 501245 | 250 | 5,0 | 12,0 | 45,5 |
| 501525 | 150 | 5,0 | 15,0 | 25,5 |
| 501535 | 230 | 5,0 | 15,0 | 35,5 |
| 502020 | 150 | 5,0 | 20,0 | 20,5 |
| 502025 | 200 | 5,0 | 20,0 | 25,5 |
| 502030 | 250 | 5,0 | 20,0 | 30,5 |
| 502035 | 320 | 5,0 | 20,0 | 35,5 |
| 502248 | 500 | 5,0 | 22,0 | 48,5 |
| 502530 | 320 | 5,0 | 25,0 | 30,5 |
| 502535 | 400 | 5,0 | 25,0 | 35,5 |
| 502540 | 550 | 5,0 | 25,0 | 40,5 |
| 503030 | 450 | 5,0 | 30,0 | 30,5 |
| 503035 | 500 | 5,0 | 30,0 | 35,5 |
| 503040 | 600 | 5,0 | 30,0 | 40,5 |
| 503048 | 750 | 5,0 | 30,0 | 48,5 |
| 503759 | 1200 | 5,0 | 37,0 | 59,5 |
| 523450 | 1000 | 5,2 | 34,0 | 50,5 |
| 551012 | 50 | 5,5 | 10,0 | 12,5 |
| 551015 | 55 | 5,5 | 10,0 | 15,5 |
| 551145 | 250 | 5,5 | 11,3 | 45,5 |
| 551240 | 230 | 5,5 | 12,0 | 40,5 |
| 552535 | 450 | 5,5 | 10,1 | 35,5 |
| 581013 | 52 | 5,8 | 10,2 | 13,5 |
| 582728 | 400 | 5,8 | 27,2 | 28,5 |
| 601012 | 55 | 6,0 | 10,2 | 12,5 |
| 601015 | 60 | 6,0 | 10,2 | 15,5 |
| 601040 | 200 | 6,0 | 10,2 | 40,5 |
| 601043 | 250 | 6,0 | 10,2 | 43,0 |
| 601220 | 110 | 6,0 | 12,0 | 20,5 |
| 601230 | 180 | 6,0 | 12,0 | 30,5 |
| 601235 | 200 | 6,0 | 12,0 | 35,5 |
| 601435 | 280 | 6,0 | 14,0 | 35,5 |
| 601730 | 250 | 6,0 | 17,0 | 30,5 |
| 602020 | 180 | 6,0 | 20,0 | 20,5 |
| 602025 | 250 | 6,0 | 20,0 | 25,5 |
| 602030 | 300 | 6,0 | 20,0 | 30,5 |
| 602035 | 400 | 6,0 | 20,0 | 35,5 |
| 602040 | 450 | 6,0 | 20,0 | 40,5 |
| 602045 | 500 | 6,0 | 20,0 | 45,5 |
| 602530 | 400 | 6,0 | 25,0 | 30,5 |
| 602535 | 500 | 6,0 | 25,0 | 35,5 |
| 602540 | 600 | 6,0 | 25,0 | 40,5 |
| 602626 | 400 | 6,0 | 26,0 | 26,5 |
| 603030 | 500 | 6,0 | 30,0 | 30,5 |
| 603035 | 600 | 6,0 | 30,0 | 35,5 |
| 603040 | 750 | 6,0 | 30,0 | 40,5 |
| 603048 | 850 | 6,0 | 30,0 | 48,5 |
| 603450 | 1200 | 6,0 | 34,0 | 50,5 |
| 651730 | 300 | 6,8 | 17,0 | 30,5 |
| 681345 | 400 | 6,8 | 13,0 | 45,5 |
| 701230 | 220 | 7,0 | 12,2 | 30,5 |
| 701250 | 400 | 7,0 | 12,2 | 50,5 |
| 701435 | 320 | 7,0 | 14,0 | 35,5 |
| 702020 | 210 | 7,0 | 20,0 | 20,5 |
| 702025 | 300 | 7,0 | 20,0 | 25,5 |
| 702030 | 380 | 7,0 | 20,0 | 30,5 |
| 702035 | 450 | 7,0 | 20,0 | 35,5 |
| 702040 | 500 | 7,0 | 20,0 | 40,5 |
| 702530 | 500 | 7,0 | 25,0 | 30,5 |
| 702535 | 600 | 7,0 | 25,0 | 35,5 |
| 703040 | 800 | 7,0 | 30,0 | 40,5 |
| 703048 | 1100 | 7,0 | 30,0 | 48,5 |
| 751425 | 240 | 7,5 | 14,0 | 25,5 |
| 751535 | 380 | 7,5 | 15,0 | 35,5 |
| 801230 | 250 | 8,0 | 12,5 | 30,5 |
| 801350 | 500 | 8,0 | 13,0 | 50,5 |
| 802025 | 350 | 8,0 | 20,0 | 25,5 |
| 802030 | 420 | 8,0 | 20,0 | 30,5 |
| 802035 | 500 | 8,0 | 20,0 | 35,5 |
| 802040 | 650 | 8,0 | 20,0 | 40,5 |
| 802050 | 800 | 8,0 | 20,0 | 50,5 |
| 802530 | 600 | 8,0 | 25,0 | 30,5 |
| 802535 | 700 | 8,0 | 25,0 | 35,5 |
| 802540 | 800 | 8,0 | 25,0 | 40,5 |
| 803030 | 750 | 8,0 | 30,0 | 30,5 |
| 803035 | 800 | 8,0 | 30,0 | 35,5 |
| 803040 | 900 | 8,0 | 30,0 | 40,5 |
| 803048 | 1200 | 8,0 | 30,0 | 48,5 |
| 803450 | 1500 | 8,0 | 34,0 | 50,5 |
| 902025 | 400 | 9,0 | 20,0 | 25,5 |
| 902030 | 500 | 9,0 | 20,0 | 30,5 |
| 902035 | 600 | 9,0 | 20,0 | 35,5 |
| 902040 | 700 | 9,0 | 20,0 | 40,5 |
| 902535 | 800 | 9,0 | 25,0 | 35,5 |
| 101550 | 800 | 10,0 | 15,0 | 50,5 |
| 102050 | 1000 | 10,0 | 20,0 | 50,5 |
| 102530 | 800 | 10,0 | 25,0 | 30,5 |
| 102540 | 1100 | 10,0 | 25,0 | 40,5 |
| 103040 | 1200 | 10,0 | 30,0 | 40,5 |
| 103048 | 1650 | 10,0 | 30,0 | 48,5 |
| 103450 | 2000 | 10,0 | 34,0 | 50,5 |
Major Application:
1)Jugador MP3/MP4, bluetooth, altavoces, coche GPS y todos los productos posibles de la electrónica
2)Aplicado extensamente en telecomunicaciones, dispositivos del audio y del vídeo, los dispositivos de información… etc.

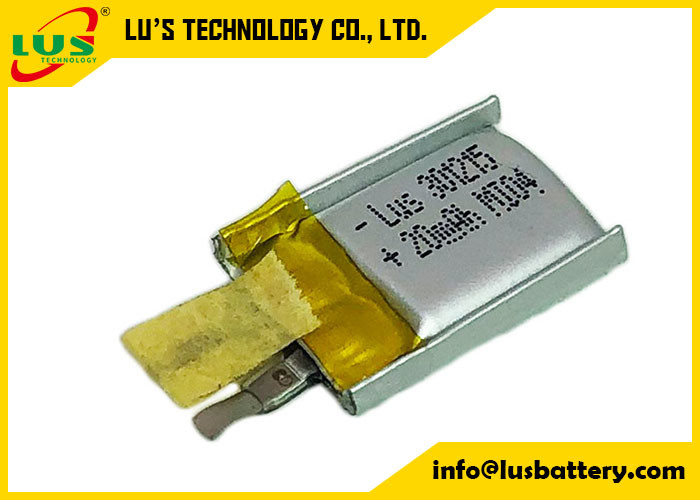

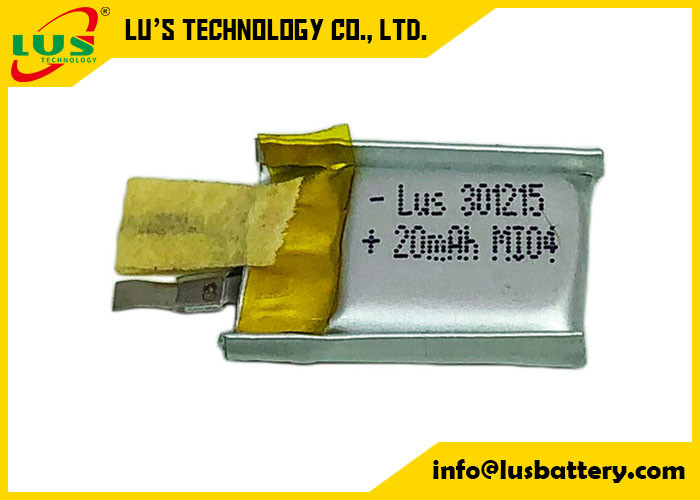

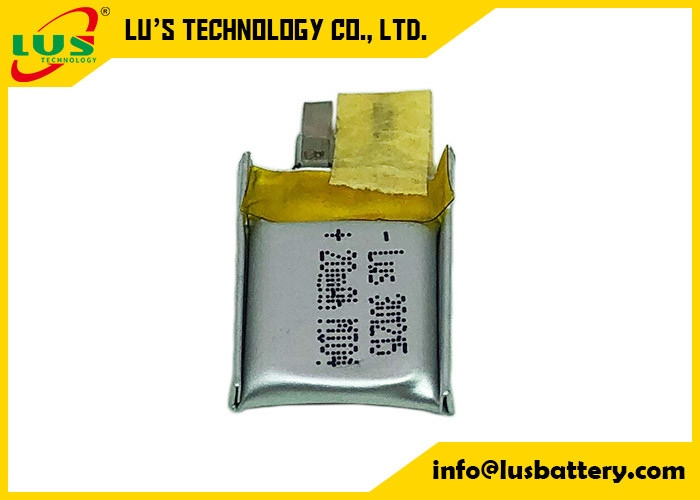

Datos de la batería de la célula de la bolsa del litio PL301215:
| Tipo | Recargable |
| Número de parte | LP301215 PL301215 |
| Voltaje | 3.7V |
| Capacidad | 20mah |
| Terminales | Los pernos, las etiquetas, los alambres o el conector depende del uso del cliente |
| Temperatura de trabajo | -20 a +60 |
| OEM | Recepción |
| Pequeña orden | Aceptable |
| MOQ | Ninguna petición si está listo para enviar |
| Pago | T/T |
