Size AA battery 2500mah 3.6V nimh rechargeable battery OEM nimh battery factory
AA Rechargeable Battery Pack 3.6volt AA2500mah NIMH battery size AA rechargeable battery 2500mah
AA 2500 mah battery AA 2450 mAh Rechargeable NiMH battery 3.6V AA 2500 mAh batteries
2500 mAh NiMH Battery 1.2V Batterie Rechargeable NiMH AA 2500 mAh nimh battery pack 3.6Volt
LUS battery factory Offering Ni-MH battery in cylindrical nimh battey and button nimh battery / nimh cion cell AA2500mAh 1.2V Rechargeable Battery nickel matel battery AA2500mah battery 3.6V
Rechargeable NIMH Batteries 3.6V and 2500mah in size AA
The NiMH AA Battery Pack has 3 pcs srechargeable AA batteries that are each rated at 2500mAh
The 3.6V2500mah nimh battery come with single cell 1.2V 2500mah 3S1P battery pack 3.6Volt rechargeable cell
NIMH battery is a rechargeable dry cell battery that in cylindrical shape rechargeable battery
NIMH rechargeable battery widely using for MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire alarm, Mining light, Sex toys, Adult toys.
AA2500mah nimh battery General Performance:
|
Item
|
Specification
|
Conditions
|
|
Standard charge
|
250 mA(0.1C) |
ambient temperature of 20±5℃, Relative Humidity: 65±20%
|
| 16 hrs |
|
Standard discharge
|
500 mA (0.2C) |
standard charge, the final voltage is 1.0V
|
|
Rapid Charge
|
500mA(0.2C) |
ambient temperature of 20±5℃, Relative Humidity: 65±20%
|
|
Rapid discharge
|
500mA(0.2C) |
standard charge, the final voltage is 1.0V
|
|
Trickle Charge
|
50～125 mA
(0.02C～0.05C)
|
Ta=-10～45 ℃ |
|
Nominal Voltage
|
1.2 V |
|
|
Open circuit voltage
|
≥ 1.25V |
Within 1 hr after standard charge
|
|
Nominal Capacity
|
2500 mAh |
|
|
Minimum Capacity
|
≥2250 min(0.2C) |
.Standard charge and Rapid discharge
|
|
Internal Impedance
|
≤30mΩ |
Within 1 hr after standard charge
|
|
Charge-retention Rate
|
60%(1500mAh)
Charge retention rate ≥Nominal capacity 60%(1500mAh)
|
Storage a period of 28 days after standard charge, then Standard discharge (0.2C) to 1.0V
|
|
Cycles Test
|
≥ 300 Cycles |
IEC61951-2:2003 (see note 2) |
3.6V battery 2500mah AA nimh battery data sheet:
| Battery type |
Rechargeable AA nimh battery |
| Battery size |
AA |
| Voltage |
3.6volt |
| Combination |
3S1P nimh battery |
| Capacity |
2500mah |
| Package |
Green PVC |
| Terminals |
Wires |
| Lable |
Welcome customized LOGO |
| Battery series |
Dry cell battery |
| Small order |
Welcome |

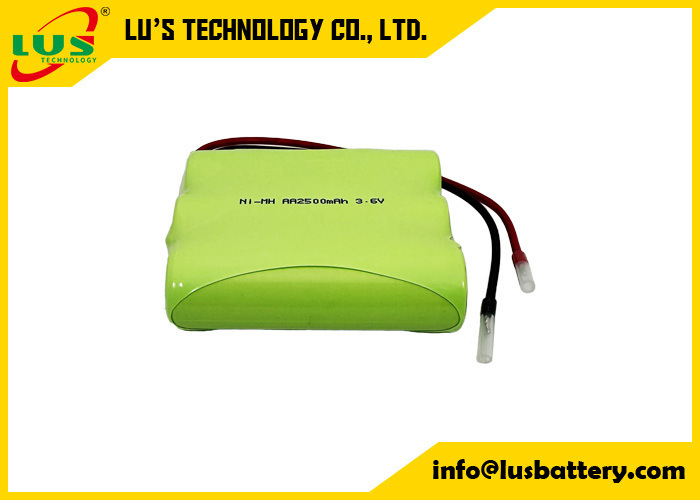

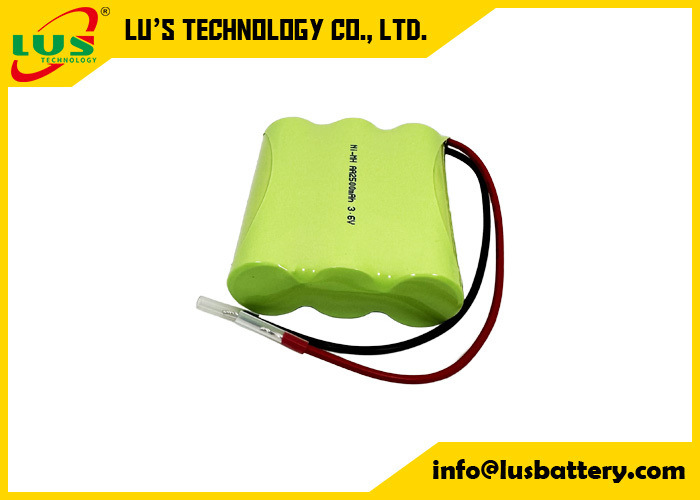

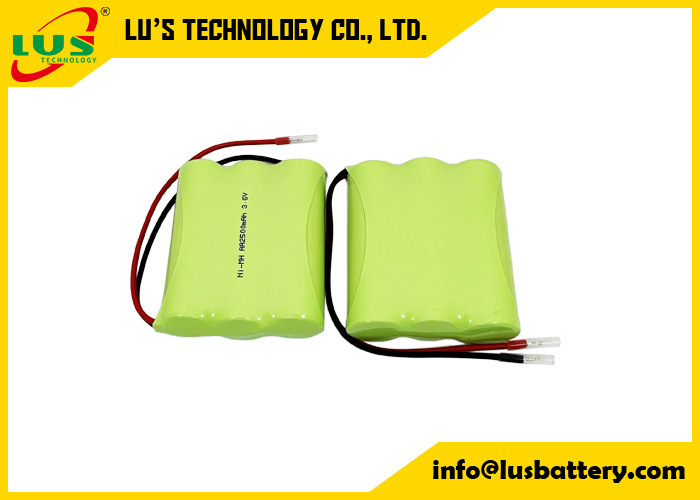

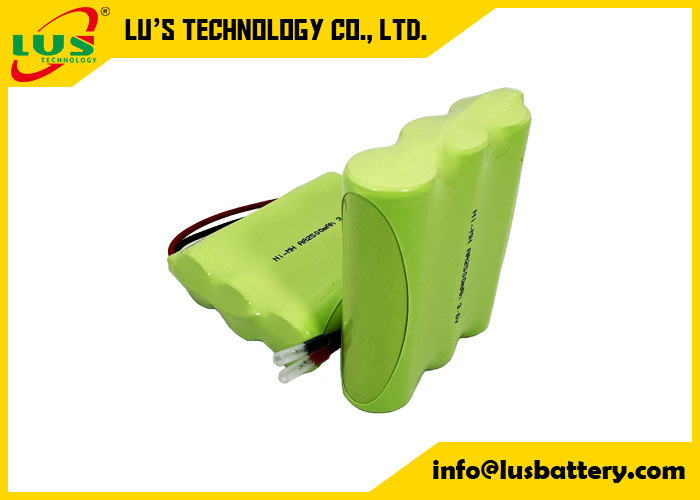

AA2500mah ni-mh battery pack 3.6V rechargeable battery ni/mh battery picture:
NIMH Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
Caution:
1. Reverse charging is not acceptable.
2. Charge before use. The cells / batteries are delivered in an uncharged state.
3. Do not charge / discharge with more than the specified current.
4. Do not short circuit the cell / battery. Permanent damage to the cell / battery may result.
5. Do not incinerate or mutilate the cell /battery.
6. Do not solder directly to the cell /battery.
7. The life expectancy may be reduced if the cell / battery is subjected to adverse conditions like:extreme temperature , deep cycling , excessive overcharge / overdischarge.
8. Store the cell / battery uncharged in a cool dry place. Always discharge batteries before bulk storage or shipment.
9. In order to prevent the decay of battery performance,battery / batteries at least every three
months to conduct a charge-discharge cycle.
10. Keep away from children. If swallowed, contact a physician at once.
11. Air ventilation should be provided in the plastic case of batteries,otherwise it may have a
risk of accumulating gas (oxygen gas, hydrogen gas)generated inside the cell resulting in
explosion triggered by fire sources (motors or switches).
Airtight battery compartments are strongly discouraged.
12.The batteries comply with Restrictions on Hazardous Substances (RoHS) Direction.
Ni/mh rechargeable battery list:
Cion nimh battery
| Cell model |
Voltage(V) |
Capacity(mah) |
Diameter(mm) |
Height(mm) |
Charge current(mA) |
Discharge current(mA) |
Weight(g) |
Temperature(°C) |
| 20H |
1.2 |
20 |
11.7±0.1 |
3.2±0.2 |
2 |
4 |
1.5 |
0~45 |
| 40H |
1.2 |
40 |
11.7±0.1 |
5.2±0.2 |
4 |
8 |
1.8 |
0~45 |
| 60H |
1.2 |
60 |
15.3±0.1 |
6.1±0.2 |
6 |
12 |
2 |
0~45 |
| 80H |
1.2 |
80 |
15.3±0.1 |
6.1±0.2 |
8 |
16 |
3.5 |
0~45 |
| 110H |
1.2 |
110 |
15.3±0.1 |
7.7±0.2 |
10 |
20 |
4.5 |
0~45 |
| 160H |
1.2 |
150 |
24.5*14±0.1 |
5.2±0.2 |
15 |
30 |
6 |
0~45 |
| 250H |
1.2 |
250 |
25±0.1 |
6.3±0.2 |
25 |
50 |
10 |
0~45 |
| 330H |
1.2 |
330 |
25±0.1 |
8.4±0.2 |
30 |
60 |
12.5 |
0~45 |
| NI-MH rechargeable battery |
| Type |
Voltage(V) |
Capacity(mAh) |
High(mm) |
Diameter(mm) |
| AAA |
1.2 |
600 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
600 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
800 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
800 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
850 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
850 |
43.5±0.5 |
10.0±0.2 |
| 1/4AAA |
1.2 |
70 |
10.5±0.5 |
10.1±0.2 |
| 2/5AAA |
1.2 |
200 |
20.2±0.5 |
10.0±0.2 |
| 1/3AAA |
1.2 |
120 |
14.6±0.5 |
10.0±0.2 |
| 1/2AAA |
1.2 |
230 |
23.5±0.5 |
10.0±0.2 |
| 2/3AAA |
1.2 |
300 |
27.5±0.5 |
10.0±0.2 |
| 4/5AAA |
1.2 |
500 |
37.5±0.5 |
10.0±0.2 |
| 5/4AAA |
1.2 |
750 |
50.5±0.5 |
10.0±0.2 |
| AA |
1.2 |
600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1800 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
1800 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2300 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2400 |
50.0±0.5 |
14.2±0.2 |
| 1/3AA |
1.2 |
300 |
16.3±0.5 |
13.9±0.2 |
| 2/5AA |
1.2 |
400 |
21.0±0.5 |
13.9±0.2 |
| 1/2AA |
1.2 |
500 |
24.0±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
300 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
600 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
650 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
700 |
28.1±0.5 |
13.9±0.2 |
| 4/5AA |
1.2 |
1200 |
42.6±0.5 |
13.9±0.2 |
| 7/5AA |
1.2 |
1800 |
64.5±0.5 |
13.9±0.2 |
| A |
1.2 |
2100 |
49.0±0.5 |
16.60±0.2 |
| 1/2A |
1.2 |
1000 |
27.4±0.5 |
16.3±0.2 |
| 1/2A |
1.2 |
1100 |
27.4±0.5 |
16.3±0.2 |
| 2/5A |
1.2 |
600 |
21.5±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
1800 |
42.1±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
2000 |
42.1±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3500 |
66.0±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3800 |
66.0±0.5 |
16.60±0.2 |
| SC |
1.2 |
2400 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
2800 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3000 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3300 |
42.0±0.5 |
22.0±0.2 |
| 4/5SC |
1.2 |
2000 |
32.5±0.5 |
22.0±0.2 |
| 5/4SC |
1.2 |
3500 |
49.0±0.5 |
22.0±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| D |
1.2 |
5000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
5000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8000 |
60.5±0.5 |
32.3±0.2 |
| D |
1.2 |
8000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8500 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
59.0±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
36.5±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
35.0±0.5 |
32.1±0.2 |
| F |
1.2 |
14000 |
90.5±0.5 |
32.1±0.2 |
| F |
1.2 |
13000 |
89.0±0.5 |
32.1±0.2 |
| 9V |
9 |
280 |
17.5 |
48.5*26.5 |
